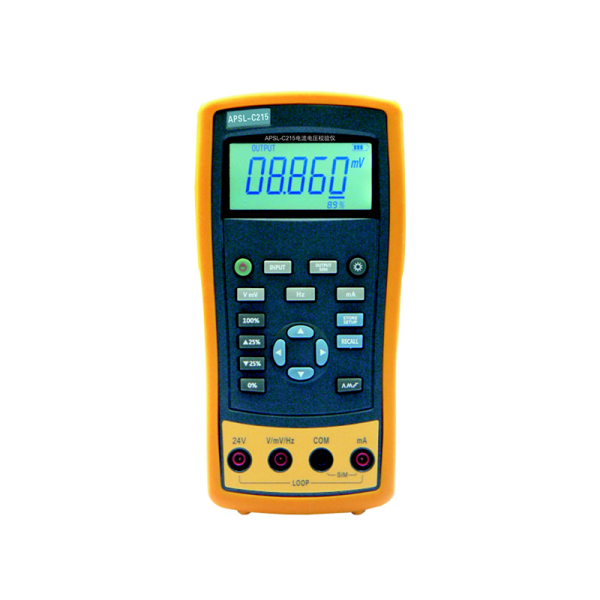

APSL-C215/C255 Current and Voltage Calibrator
Product Description
Product Overview APSL-C215、APSL-C255The current and voltage calibrator is a handheld calibration instrument that integrates output and measurement of V, mV, mA, and Hz signals with high accuracy, high resolution, and high reliability. The instrument adopts a large LCD display for clear readings, and also features an adjustable backlight and auto power-off function.
The instrument can be powered by DC or AC power supply, making it more convenient to use.
Specifications
- Measure / output signals
- Voltage, current, frequency, millivolt (V, mV, mA, Hz); active/passive current output; 2-wire transmitter simulation
- Accuracy
- 0.02% (APSL-C215)
- Channels
- Manual step, automatic step, 0-100% step & ramp output; large LCD with adjustable backlight & auto power-off
- Protection
- IP67 waterproof; auto-protection against accidental 220 V on any signal terminal
- Power output
- 6 × AAA batteries or AC adapter; built-in DC 24 V loop supply
- Operating temperature
- -10 ~ 55 °C
- Storage temperature
- -20 ~ 60 °C
- Working conditions
- 0-90% RH, non-condensing
- Dimensions
- 185 × 93 × 47 mm
- Weight
- 350 g
Product Details
Product Overview
APSL-C215、APSL-C255The current and voltage calibrator is a handheld calibration instrument that integrates output and measurement of V, mV, mA, Hz signals with high precision, high resolution, and high reliability. The instrument adopts a large LCD display for clear readings, and also has adjustable backlight and auto power-off functions. The instrument can be powered by DC or AC power supply for more convenient use.
Product Features
Super protection function: waterproof levelIP67, any signal terminal misconnection220V automatic protection;
measurement/output: voltage, current, frequency, millivolt, among which current output supports active and passive;
can simulate two-wire transmitter;
Accuracy is0.02%（APSL-C215 type),0.05%（APSL-C255 type);
Manual stepping, automatic stepping,0～100% Step and ramp output function;
With white LED backlight, manual backlight adjustment and automatic power-off function, suitable for field use;
ProvidesDC24V loop power supply for field commissioning;
Uses standard 7# battery, easy for customers to replace and purchase;
General technical specifications
Operating temperature:-10℃～55℃；
Storage temperature:-20℃～60℃；
Relative humidity:0～90% RH, non-condensing;
Weight: 350 grams;
Dimensions:185mm×93mm×47mm；
Power supply: 6 AA batteries or AC adapter;
Communication method:RS232。
Standard accessories
Test leads: 18"A53Test lead 1 pair;
Power adapter: 18A52One charger.
Optional accessories
RS232Communication cable: 18P02Communication cable.
Accessories
Power adapter (18A52）
Test Lead (18A53）
7# NiMH Battery
