TMMS-2000 Instrument Automatic Verification and Maintenance Management System

Product Overview
This software is also called fully automatic pressure verification system software. It can not only work withAPSL501series fully automatic pressure calibration benches,APSL503intelligent pressure controllers, APSL type 311 series precision pressure calibrators, etc. to form a fully automatic pressure verification system, but also manage instruments such as pressure, temperature, flow, liquid level, current, voltage, etc., forming an automatic instrument verification and maintenance management system.
The fully automatic pressure calibration system is divided into an on-site fully automatic pressure calibration system and a calibration room fully automatic pressure calibration system.
The on-site fully automatic pressure calibration system: composed of automatic calibration software,APSL501 series or 601 series fully automatic pressure calibration bench,APSL311 series precision pressure calibrator (collectively referred to as "pressure calibrator"), suitable for on-site applications. The automatic calibration software downloads the parameters of the on-site instruments to be calibrated into the pressure calibrator. During the calibration process, the calibrator automatically records the data in the memory. After calibration, the calibration results are uploaded back to the automatic calibration software for data processing and report printing.
Verification room fully automatic verification system: composed of automatic verification software,APSL501 or 601 series fully automatic pressure calibration bench,APSL311 series precision pressure calibrator,APSL503 series intelligent pressure controller,APSL801Fully automatic piston pressure gauge,APSL803series fully automatic pressure calibration device (collectively referred to as "fully automatic pressure calibration device"), suitable for use in calibration room. The "fully automatic pressure calibration device" is directly connected to a computer for real-time calibration, forming a fully automatic pressure calibration system. After the instrument is calibrated, data processing is completed simultaneously, and the calibration report and calibration certificate can be printed immediately.

Software functions
Automatic calibration of thermal instruments:
Fully automatic verification of pressure transmitters, pressure switches, and pressure gauges: just one click of the mouse (or start key) can control the APSL or EASE type fully automatic pressure calibration bench according to database settings, automatically completing pressurization, depressurization, stabilization, data recording, error analysis, printing reports and certificates, etc.
Supports multiple calibration benches and multiple calibration methods:
One computer can simultaneously connect to 3 APSL or EASY type fully automatic pressure calibration benches for real-time calibration. Supports single-point calibration, dual-point calibration, four-point calibration, upload and download verification methods.

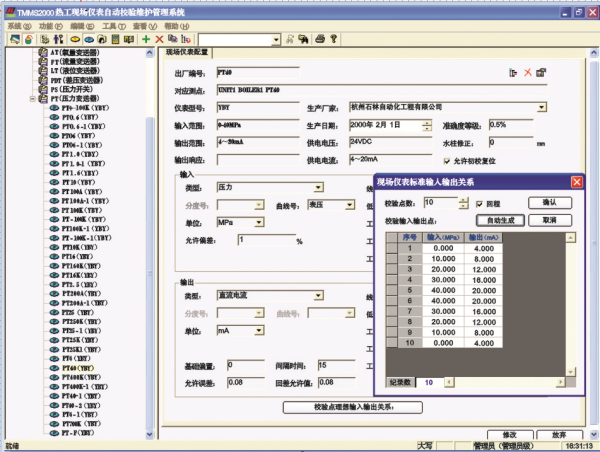

Comprehensive management of field instrument parameters:
(1) Manage process measurement point parameters
(2) Manage field instrument parameters
Automatically manage calibration results:
Manage calibration results for multiple years: test results before and after adjustment.
Comprehensive management personnel and standard equipment:
(1) Manage verification personnel
(2) Manage management personnel
(3) Manage standard equipment
Conveniently generate work task orders
(1) The system only needs a short time to print out the list of instruments that have expired and must be calibrated within a certain period (such as one month, one week), the list of instruments that failed calibration, and the list of instruments that were missed (scheduled for calibration but not calibrated for some reason), which is very helpful for managers to arrange work.
(2) It can calculate the pre-calibration pass rate.
Automatically print calibration reports:
The format of the verification report can be specified by the user. There can be multiple formats.
Features of the software:
Integrated management and verification. The management system can directly communicate with the fully automatic pressure calibration bench or calibrator, and verification data can directly enter the management database.
Integrated verification of pressure transmitters, pressure switches, and pressure indicating gauges. Verification results are automatically identified and stored in corresponding databases.
Results can be entered via communication or manually, and the system automatically completes error analysis, generates verification result database, verification report, and verification certificate.
The system ensures the authenticity of verification reports. Verification results cannot be manually altered, avoiding the common phenomenon of filling in verification reports from memory afterwards, thus ensuring that verification reports are authentic, credible, scientific, and standardized.
This system can greatly improve the efficiency of verification work.
Connectable verification equipment
TMMS-2000 instrument automatic verification and maintenance management system can be connected with the following verification equipment:
APSL type 501 series or 601 series fully automatic pressure calibration bench or EASY type fully automatic pressure calibration bench
APSL type 311 series precision pressure calibrator or 312 series precision pressure gauge
BETA950orBETA960Multifunction Calibrator
BETA325Pressure Calibrator
BETA135, 235 Multifunction Calibrator
Druck Calibrator
TC2000Low-temperature calibration furnace
Classification of software:
This software is divided into network version, standalone full version, standalone 560-point software, and standalone 56-point software.
(1) The network version software package supports network functions and can be used on the factory MIS network. A server must be set up, and it also has the functions of the on-site fully automatic pressure calibration system and the calibration room fully automatic pressure calibration system. The database capacity is 65,000 points.
(2) Standalone full version software package, can only be used on one computer. It has both the functions of an on-site fully automatic pressure calibration system and a calibration room fully automatic pressure calibration system. The database capacity is 5000 points.
(3) Standalone 560-point software package, can only be used on one computer. It has both the functions of an on-site fully automatic pressure calibration system and a calibration room fully automatic pressure calibration system, and can be connected to APSL type, EASY type, EASE type calibration benches andBETA325 pressure calibrators. The database capacity is 560 points.
