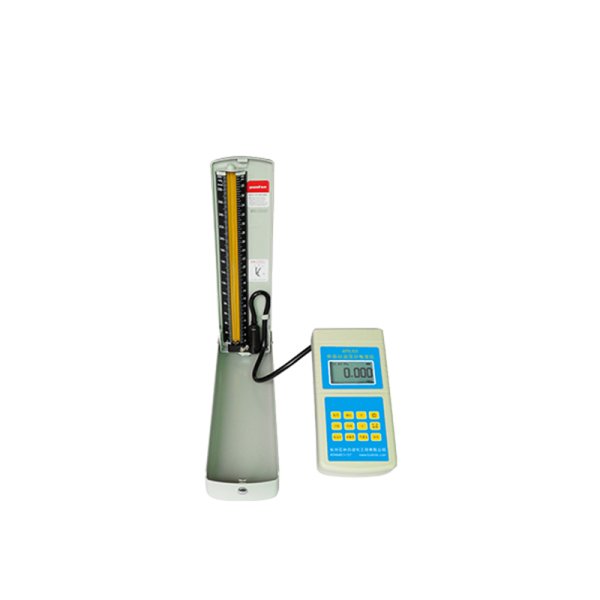

APSL505Automatic Blood Pressure Monitor Calibrator
Product Description
APSL-505 fully automatic blood pressure monitor calibration instrument according to the national metrological verification regulationJJG270-2008andJJG692-2010 stipulations, using microprocessor chip and pneumatic components, realizes intelligent detection, improves the detection accuracy of blood pressure monitors (gauges), reduces labor intensity of personnel, and is suitable for testing **blood pressure monitors (gauges) and electronic blood pressure monitors (gauges).
Specifications
- Reference standard
- JJG270-2008, JJG692-2010
- Pressure range
- Measurement (0-60) kPa; pressurization (0-40) kPa
- Accuracy
- Class 0.05
- Main use
- Verification speed (3-5) s/point; over-pressure protection 42 kPa; imported pressure sensor
- Operating temperature
- -5 ~ 50 °C, RH <95%
- Dimensions
- 210 × 104 �� 44 mm
- Weight
- 1 kg
Product Details
Product Overview
APSL-505Automatic Blood Pressure Monitor CalibratorIn accordance with national metrological verification regulationsJJG270-2008andJJG692-2010According to the regulations, using microprocessor chips and pneumatic components, intelligent detection is realized, improving the detection accuracy of sphygmomanometers (gauges) and reducing labor intensity. It is suitable for detecting **sphygmomanometers (gauges) and electronic sphygmomanometers (gauges).
Suitable for use by metrology departments, sphygmomanometer manufacturers, and hospitals.
Features and Advantages
(1) Large-screen LCD, easy to use;
(2) Automatically and quickly inflate and adjust the air pressure to the required pressure point, with fast and stable pressure adjustment and an audible prompt;
(3) The air pressure adjustment is fast and stable, and it can also safely detect the **sphygmomanometer40kPa(300mmHg) point;
(4) For the sensitivity verification item, it automatically processes according to the metrological verification regulation;
(5) For the air tightness verification item, automatically calculate and display the verification result;
(6) Use imported pressure sensors;
(7) Built-in overpressure protection(42kPa) Safe and reliable;
(8) Quickly select detection points and detection items; once set, it can be saved permanently.
Technical Parameters
(1) Measurement Range:(0～60)kPa;
(2) Pressurization Range:(0～40)kPa;
(3) Accuracy: 0.05 class;
(4) Verification speed: (3-5) s/point;
(5) Ambient temperature:(-5～50)℃;
(6) Relative humidity: <95%;
(7) Dimensions:210mm*104mm*44mm;
(8) Weight:1kg。
Configuration Parameters
(1) APSL-505 Automatic Blood Pressure Monitor Calibrator, 1 unit
(2) Connecting pipe 1 piece
(3) Aluminum box 1 piece
(4) Installation, operation, and maintenance manual for this equipment 1 set
