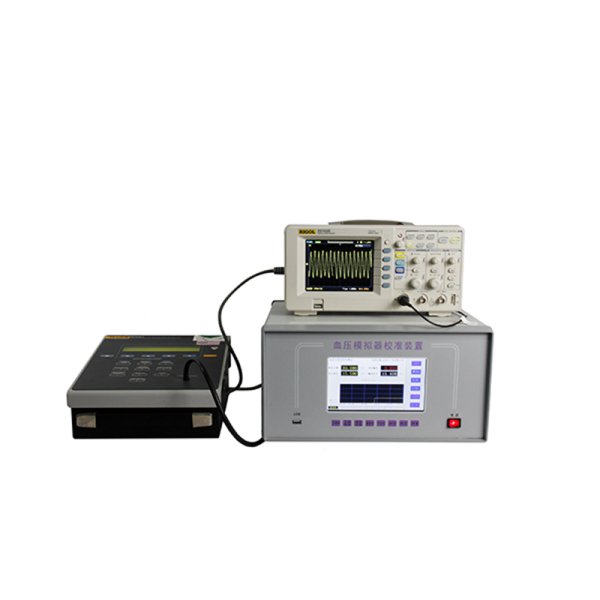

APSL506Fully Automatic Blood Pressure Simulator Calibration Device

1. Product Overview
APSL506The blood pressure simulator calibration device is designed and produced according toJJF1626-2017the blood pressure simulator calibration specification. It utilizes a microprocessor chip and pneumatic components to achieve intelligent detection, improve detection accuracy, and reduce labor intensity for personnel. It is suitable for calibrating blood pressure simulators.
The blood pressure simulator calibration device uses a touch screen for display and control, and forJJF1626-2017Each requirement has a one-key function, that is, pressing one function key can automatically complete the calibration of a function. Suitable for metrology departments.

2. Basic performance
1) Pressure measurement
✓Pressure measurement range:(0-60)kPa。Pressure accuracy: 0.02 class.

✓Pressure output range:(0-53.3)kPa。

✓Pressure unit: kPa;

✓Compensation temperature: (-5 to 50) °C (accuracy assured);

✓Storage temperature:(-30~80)℃；

✓Operating environment: a. Ambient temperature:(-5~50)℃; b. Relative humidity﹤95%; c: Atmospheric pressure:(86~105)kPa；
2) Pressure converter
✓Pressure range:(0-34.5)kPa

✓Voltage output range:(0-5)V

✓With pressure display function, error less than±0.0345kPa

✓Voltage output accuracy:0.1%

✓Built into the fully automatic blood pressure simulator calibration device

3) Oscilloscope
✓Voltage measurement range:0mV-5V: Maximum permissible error:±3%

✓Frequency measurement range:(0-100)Hz, maximum permissible error:±0.1%

✓Frequency bandwidth: not less than20MHz
4) Metal container
✓Built-in500mL。
3. Main functions
One-key calibration of indication error, simulation range test, repeatability test, and air tightness test can be completed.
1) Static pressure range and indication error calibration: Press the 'indication error' key to automatically complete pre-pressurization twice, range detection, and indication verification, and the verification results can be recalled.

2) Simulation range test: Automatically send out blood pressure ranges for adult 1, adult 2, newborn 1, and newborn 2, and waveforms of varying sizes can be seen on the oscilloscope.

3) Repeatability test: Automatically send out the average value15.5kPa、20kPa、13.3kPa pressure, display uniform waveform on oscilloscope, freeze waveform, manually calculate repeatability. Also calculate pulse rate error.

4) Air tightness test: press the "Test" key, automatically test air tightness, and automatically judge pass or fail.
