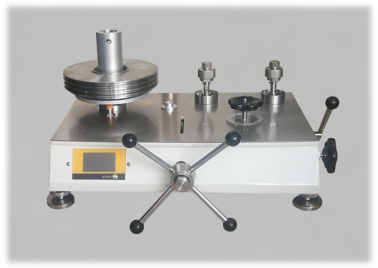

HSLY Liquid Piston Pressure Gauge
Product Description
The HSLY liquid piston pressure gauge is a high-accuracy pressure standard instrument. It is a measuring device that performs pressure measurement based on the principle of hydrostatic equilibrium (i.
e., the fluid pressure acting on the effective area of the piston is balanced with the gravitational force of the loaded weights).
It generally consists of a piston system, special weights, and a pressure calibrator.
Specifications
- Main use
- High-accuracy pressure standard measuring pressure via hydrostatic balance; piston system + dedicated weights + pressure calibrator; verifies two devices simultaneously
- Reference standard
- JJG59-2007 (Piston Pressure Gauges); JJG99-2006 (Weights); Verification Certificate issued per unit
- Pressure range
- HSLY-6 (0.04 ~ 0.6); HSLY-60 (0.1 ~ 6); HSLY-70 (0.1 ~ 7); HSLY-600 (1 ~ 60); HSLY-700 (1 ~ 70); HSLY-1000 (2 ~ 100) MPa
- Accuracy
- Class 0.05 / 0.02 / 0.01 / 0.005
- Medium
- Transformer-oil-and-kerosene blend or sebacate ester
- Pressure units
- MPa; nominal piston areas 1 / 0.5 / 0.5 / (0.05 or 0.1) / (0.05 or 0.1) / 0.05 cm² (by model)
- Key functions
- Modular piston system (only the module is submitted for re-verification); large color LCD showing piston position; beveled front housing for easier reading; stainless steel table top; piston blow-down system for draining dirty oil; hanging-basket high-pressure weights (low center of gravity); quick pressure connectors with no oil leakage
- Measurement functions
- Weight material: carbon steel (Class 0.05) / non-magnetic stainless steel (Classes 0.02 / 0.01 / 0.005); piston rod & cylinder in tungsten carbide
- Process connection
- M20×1.5 interface thread; verifies two devices under test simultaneously
- Dimensions
- 660 × 500 × 450 mm (L × W × H)
- Weight
- HSLY-6 45 kg; HSLY-60 52 kg; HSLY-70 57 kg; HSLY-600 55/85 kg; HSLY-700 65/95 kg; HSLY-1000 100 kg
Product Details
Product Overview
HSLY LiquidThe piston-type pressure gauge is a high-accuracy pressure standard device that measures pressure based on the principle of hydrostatic equilibrium (i.e., the fluid pressure acting on the effective area of the piston balances with the gravitational force of the loaded weights). It typically consists of a piston system, special weights, and a pressure calibrator.
Measurement Range
l(0.04～0.6)MPa； (0.1～6)MPa； (0.1～7)MPa；(1～60)MPa；(1～70)MPa；(2～100)MPa;
Accuracy class
l0.05 class; 0.02 class; 0.01 class; 0.005 class
Piston system material
lPiston rod: tungsten carbide
lPiston cylinder: tungsten carbide
Weight material
lCarbon steel (Class 0.05); non-magnetic stainless steel (Class 0.02; Class 0.01; Class 0.005);
Working medium
lTransformer oil and kerosene mixed oil or sebacate
Overall dimensions
lLengthX width X height (660 X 500 X 450) mm
Product Features
◆The piston and piston cylinder are made of tungsten carbide, which has the characteristics of high strength, high hardness, and low coefficient of linear expansion with temperature, improving the wear resistance of the piston and extending its service life.
◆The piston system has a modular design. When sending for inspection, simply unscrew the module directly (no need to carry the heavy main machine).
◆Large color screen display, the change of piston working position is displayed on a large color LCD screen, which is clearer.
◆Inclined surface design, the front end of the housing is inclined, making it more convenient for users to read than the previous vertical surface.
◆The surface of the platform is made of stainless steel, which is aesthetically pleasing and more resistant to impacts.
◆The piston is equipped with a sewage discharge system, and dirty oil in the oil cup can be directly discharged through the sewage outlet.
◆The pressurization system is reliable, lightweight and durable.
◆The high-pressure piston weight adopts a hanging basket structure, with a low center of gravity and good stability.
◆Two tested gauges can be verified simultaneously, using quick pressure connectors, with absolutely no oil leakage.
◆All indicators fully comply withJJG59-2007Piston-type pressure gauge.JJG99-2006Weights, National Metrological Verification Regulation.
Each unit can be issued with a "Verification Certificate."
Model configuration
TypeModel | HSLY-6 | HSLY-60 | HSLY-70 | HSLY-600 | HSLY-700 | HSLY-1000 | |
Measuring Range(MPa) | 0.04～0.6 | 0.1～6 | 0.1～7 | 1～60 | 1～70 | 2～100 | |
Nominal Upper Limit(MPa) | 0.6 | 6 | 7 | 60 | 70 | 100 | |
Nominal lower limit(MPa) | 0.04 | 0.1 | 0.1 | 1 | 1 | 2 | |
Measurement upper limit(MPa) | 0.6 | 6 | 7 | 60 | 70 | 100 | |
Measurement lower limit(MPa) | 0.04 | 0.1 | 0.1 | 1 | 1 | 2 | |
Nominal piston area(cm2) | 1 | 0.5 | 0.5 | 0.05/0.1 | 0.05/0.1 | 0.05 | |
BottomPlate | Maleweigh | 0.4 | 0.5 | 0.5 | 0.5/1 | 0.5/1 | 1 |
generated | 0.04 | 0.1 | 0.1 | 1 | 1 | 2 | |
Special | PublicNominal | 0.1;0.5 | 0.5;2.5 | 0.5;2.5 | 0.5;2.5/1;5 | 0.5;2.5/1;5 | 0.5;2.5;5 |
generated | 0.01;0.05 | 0.1;0.5 | 0.1;0.5 | 1;5 | 1;5 | 1;5;10 | |
quantity(block) | 6;10 | 4;11 | 4;13 | 4;11 | 4;13 | 3;1;9 | |
Interface thread specification | M20 × 1.5 | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | |
WeightQuantity(kg) | 45 | 52 | 57 | 55/85 | 65/95 | 100 | |
