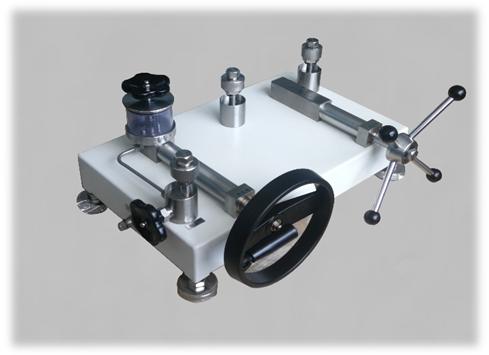

MPSL-10DW/25DW/40DW/60DW/72DW Water Medium High Pressure Source
Product Description
The MPSL-10DW/25DW/40DW/60DW/72DW water medium high-pressure pressure source is a pressure generation device used in the pressure calibration process. It is mainly used to calibrate pressure transmitters, precision pressure gauges, general pressure gauges, and other pressure instruments.
Specifications
- Generated pressure
- 0 ~ 10 / 25 / 35 / 40 / 60 / 70 / 100 MPa
- Stability
- 0.05% F.S
- Medium
- Deionized water
- Pressure ports
- M20×1.5
- Dimensions
- 520 × 350 × 275 mm
- Weight
- 12 kg
Product Details
Product Introduction
The MPSL-10DW/25DW/40DW/60DW/72DW water medium high-pressure source is a pressure generation device during pressure calibration. It is mainly used to calibrate pressure transmitters, precision pressure gauges, general pressure gauges, and other pressure instruments.
It has a simple structure, high reliability, easy operation and maintenance, not prone to leakage, and smooth pressure rise and fall. Due to the spiral pressurization design, the structure is simple, not easy to pollute, and therefore more durable. A drain port has been added, making it more convenient for users to replace the working medium. Pressure components are made of stainless steel to prevent rust.
Technical Specifications
lPressure range: (0～10)MPa (0～25)MPa (0～35)MPa (0～40)MPa
(0～60)MPa (0～70)MPa (0～100)MPa
lStability: 0.05% F.S
lWorking medium: deionized water
lOutput port: M20×1.5
lDimensions:520mm×350mm×275mm
lWeight:12kg
