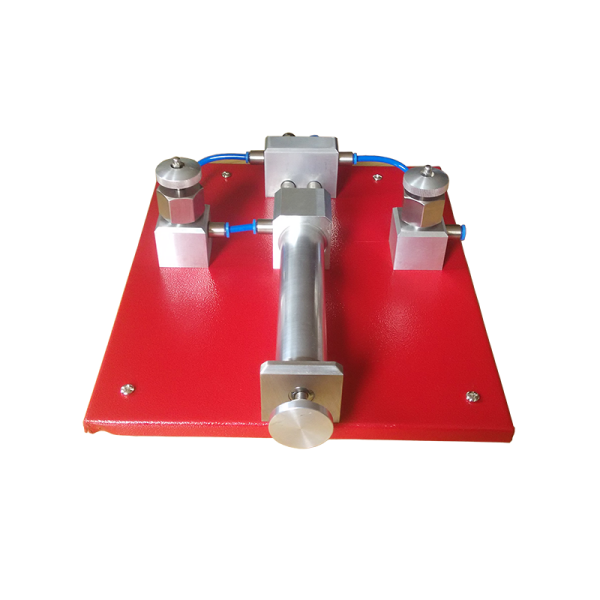

MPSL-1WS Type Micro Differential Pressure Source (0～10) kPa
Product Description
Product Overview The MPSL-1WS type micro differential pressure pressure source, made of high-quality stainless steel and aluminum alloy materials, imported seals and connectors, is one of the main equipment for calibrating micro differential pressure transmitters, micro differential pressure sensors and other micro differential pressure instruments. In the digital pressure calibration system, it can provide a stable micro pressure source with sufficiently small controllable pressure changes.
Technical Parameters
- Pressure range: (0～10) kPa
- Medium: air
- Minimum controllable adjustment: 0.1Pa
- Interface size: Φ4mm2 quick connectors for inserting tubes Φ6mm2 quick connectors for inserting tubes
- Dimensions: 250mm×210mm×100mm
- Net weight: 1.4kg
Specifications
- Pressure range
- 0 ~ 10 kPa
- Medium
- Gas (air)
- Adjustment sensitivity
- 0.1 Pa
- Pressure ports
- 2× Φ4 mm + 2× Φ6 mm quick connectors
- Dimensions
- 250 × 210 × 100 mm
- Weight
- 1.4 kg
Product Details
Product Overview
The MPSL-1WS micro differential pressure pressure source, made of high-quality stainless steel and aluminum alloy materials, with imported seals and connectors, is one of the main equipment for calibrating micro differential pressure transmitters, micro differential pressure sensors, and other micro differential pressure instruments. In digital pressure calibration systems, it can provide a stable micro pressure source with sufficiently small controllable pressure changes.
Technical Parameters
Pressure range: (0～10) kPa
Medium: air
Minimum controllable adjustment: 0.1Pa
Interface size: Φ4mm2 quick-connect fittings for tube insertion
Φ6mm2 quick-connect fittings for tubing
Overall dimensions:250mm×210mm×100mm
Net weight:1.4kg
