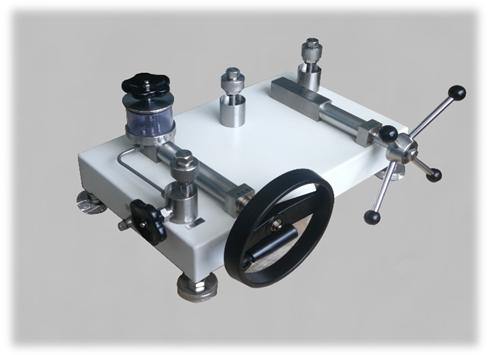

MPSL-20D~500D Series High-Pressure Hydraulic Source
Product Description
MPSL25DThe /40D/60D/72D/100D/160D/250D/500D/ series high-pressure liquid pressure source is a pressure generation device used in the pressure calibration process. It is mainly used to calibrate pressure transmitters, precision pressure gauges, general pressure gauges, and other pressure instruments.
It has a simple structure, high reliability, easy operation and maintenance, is not prone to leakage, and provides smooth pressure increase and decrease. Due to the screw-type pressure increase in the design, the structure is simple and not easily contaminated, making it more durable.
An additional drain port has been added, making it more convenient for users to replace the working medium.
Specifications
- Generated pressure
- 0 ~ 20 / 25 / 35 / 40 / 60 / 70 / 100 / 160 / 200 / 250 / 350 / 500 MPa
- Stability
- 0.05% F.S
- Adjustment sensitivity
- 1 kPa
- Medium
- Transformer oil
- Pressure ports
- M20×1.5
- Dimensions
- 520 × 350 × 275 mm
- Weight
- 12 kg
Product Details
Product Overview
MPSL25DThe /40D/60D/72D/100D/160D/250D/500D/ series high-pressure liquid pressure source is a pressure generation device used in pressure calibration processes. It is mainly used to calibrate pressure transmitters, precision pressure gauges, general pressure gauges, and other pressure instruments.It features a simple structure, high reliability, easy operation and maintenance, low leakage, and smooth pressure rise and fall. Due to the screw-type pressure boosting design, it has a simple structure, is not easily contaminated, and is therefore more durable. A drain port has been added, making it more convenient for users to replace the working medium.
Technical Specifications
lPressure range: (0～20)MPa (0～25)MPa (0～35)MPa (0～40)MPa (0～60)MPa (0～70)MPa (0～100)MPa
(0～160)MPa (0～200)MPa（0-250）MPa （0-350）MPa (0-500)MPa
lStability: 0.05% F.S; Adjustment fineness: 1kPa
lWorkMedium: transformer oil
lOutput port:M20×1.5
lDimensions:520mm×350mm×275mm
lWeight:12kg
