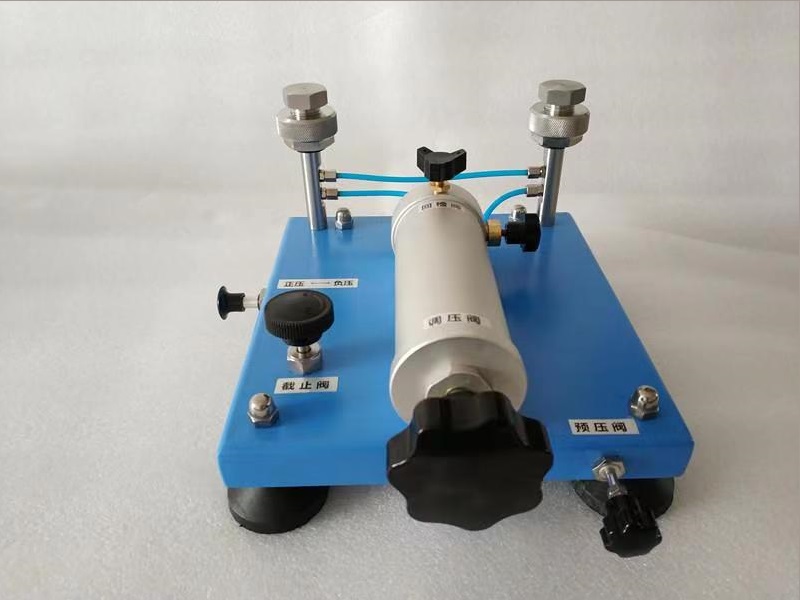

MPSL-6KS Gas Pressure Source (-95 to 600) kPa
Product Description
1. Product Overview The MPSL-6KS gas pressure source is precision-made with high-quality stainless steel and aluminum alloy materials and imported seals.
The MPSL-6KS is one of the main devices for calibrating pressure transmitters, pressure sensors, general (precision) pressure gauges, and other pressure instruments. In digital pressure calibration systems, it can provide a stable gas pressure source.
2. Functional Features 1.
Open structure, simple operation, and easy maintenance. 2.
Push-pull pressurization, allowing remote calibration of instruments. 3.
Ultra-wide range fine adjustment with high minimum controllable resolution. 4.
Integrates both positive and negative pressure generation, with convenient switching between positive and negative pressure. 5.
Excellent sealing performance, not prone to leakage. 6.
The output port uses a quick-connect fitting, allowing easy installation and removal of instruments without a wrench. 3.
Technical Specifications
- Pressure range: (-95 to 600) kPa
- Minimum controllable resolution: 0.01 Pa
- Dimensions:300mm×220mm×120mm
- Weight:3kg
Specifications
- Pressure range
- -95 ~ 600 kPa
- Medium
- Gas (air)
- Adjustment sensitivity
- 0.01 Pa
- Dimensions
- 300 × 220 × 120 mm
- Weight
- 3 kg
Product Details
1. Product Overview
MPSL-6KS gas pressure source is made of high-quality stainless steel and aluminum alloy materials, with imported seals, precision-crafted.
MPSL-6KS is one of the main equipment for calibrating pressure transmitters, pressure sensors, general (precision) pressure gauges, and other pressure instruments. In digital pressure calibration systems, it can provide a stable pneumatic pressure source.
2. Features
1. Open structure, simple operation, easy maintenance.
2. Push-pull pressurization, can remotely calibrate instruments.
3. Ultra-wide range fine adjustment, minimum controllable adjustment resolution is high.
4. Integrates positive and negative pressure generation, convenient switching between positive and negative pressure.
5. Superior sealing performance, not easy to leak.
6. The output port adopts a quick coupling, allowing easy installation and removal of the instrument without a wrench.
3. Technical specifications
Pressure range: (-95 to 600) kPa
Minimum controllable adjustment: 0.01Pa
Dimensions:300mm×220mm×120mm
Weight:3kg
