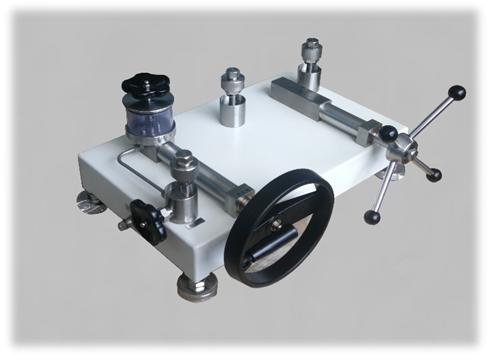

MPSL-70D Manual Hydraulic Source
Product Description
The MPSL-70DF manual hydraulic source is composed of a pre-pressure valve, pressure regulating valve, return check valve, and pressure output interface, forming an integrated solid structure. It features a novel design, simple operation, and easy maintenance.
It has advantages such as good sealing performance, smooth pressure increase, fast pressure rise speed, labor-saving, and simple operation. It is an ideal replacement product for piston pressure sources.
Specifications
- Generated pressure
- -0.085 ~ 70 MPa
- Adjustment sensitivity
- 0.1 kPa
- Medium
- Transformer oil / pure water
- Pressure ports
- M20×1.5 (female)
- Dimensions
- 430 × 320 × 150 mm
- Weight
- 14 kg
Product Details
1. Product Overview
The MPSL-70DF manual hydraulic source consists of a pre-pressure valve, pressure regulating valve, return check valve, and pressure output interface in an integrated solid structure. It features a novel design, simple operation, and easy maintenance. It has advantages such as good sealing performance, stable pressure increase, fast pressure rise, labor saving, and simple operation. It is an ideal replacement product for piston pressure sources.
2. Technical Specifications
Pressure generation range: (-0.085 to 70) MPa
Adjustment fineness:0.1kPa
Working medium: transformer oil or pure water
Output interface:M20×1.5 internal
Dimensions:430mm×320×mm×150mm
Weight:14.0kg
